Introduction: Why Low Volume Is the Medical Industry Norm
In most manufacturing industries, low volume is an exception. In medical devices, it is the norm. A new implant line might launch at 50–500 units per year; a custom surgical instrument at 10–100 units; a patient-specific implant at one-offs. This is why low volume and custom medical CNC machining form the backbone of the industry.
This guide explains how low-volume and Custom Medical CNC Machining actually works — the stages from prototype to production, typical lead times, pricing structure, and how to scale smoothly. For the underlying CNC process, see ourmedical CNC machining guide.
Stages of Low-Volume Medical CNC Machining
A typical medical part travels through these stages:
Stage 1: Prototyping (1–20 pieces)
Goal: Validate design, fit, form, and function
Characteristics: One-off or tiny batches; tolerance may be less critical than geometry; material is often surgical grade but not fully certified
Lead time: 5–15 business days
Cost: Higher per part (setup is amortized over 1–2 pieces)
Stage 2: Design Iteration / Clinical Trial (20–200 pieces)
Goal: Refine design based on prototype feedback; support clinical trials
Characteristics: Multiple design revisions; supplier must be flexible
Lead time: 2–4 weeks per iteration
Cost: Moderate; still no tooling
Stage 3: Bridge Production (200–2,000 pieces)
Goal: Supply initial commercial demand while production processes are being validated
Characteristics: Process begins to be documented and validated; first Article Inspection required
Lead time: 4–6 weeks
Cost: Improving per-part pricing
Stage 4: Volume Production (2,000+ pieces)
Goal: Steady commercial supply
Characteristics: Process locked, validated, with SPC; potentially transition to cast/forge near-net shape for metal
Lead time: 4–8 weeks (recurring)
Cost: Lowest per-part pricing
Key insight for medical teams: Choose a CNC supplier who can support ALL stages. Switching suppliers between prototype and production introduces revalidation risk.

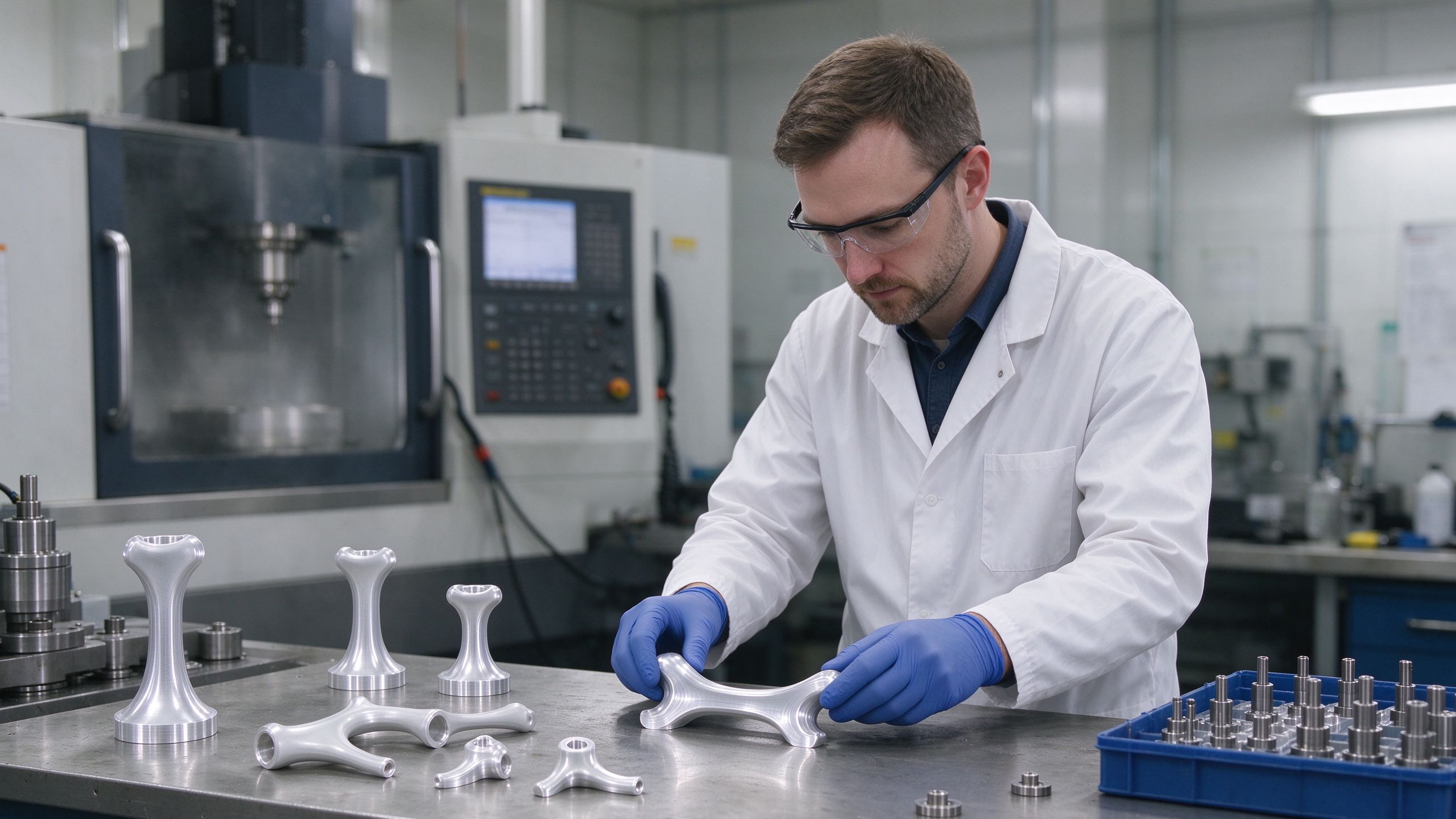

Custom Medical CNC Parts: What "Custom" Really Means
"Custom medical CNC parts" covers several distinct scenarios:
1. Patient-Specific Implants
One-off or near-one-off parts designed from a patient's CT/MRI scan
Examples: cranial implants, custom hip stems, patient-specific guides
Process: Medical scan → 3D model → CNC program → machine → inspect → deliver
Lead time: 1–3 weeks per implant
Cost: High (design + machining per case)
2. Custom Surgical Instruments
Custom-made for a specific surgeon's technique or procedure
Examples: bespoke retractors, custom drill guides, specialized forceps
Volume: 5–50 pieces per design
Lead time: 2–4 weeks
3. Custom Device Components for a Unique Product
A component that no off-the-shelf part matches
Examples: custom brackets, housings, valve bodies
Volume: 100–2,000 pieces
Lead time: 3–5 weeks
4. Modified Standard Parts
What makes custom machining different:
No catalog or standard cost — every quote is based on the drawing
DFM (Design for Manufacturing) feedback is critical to avoid costly rework
Documentation, traceability, and certification requirements remain the same as production parts — even for one-offs
Pricing and Lead Time for Low-Volume Medical CNC
Smaller volumes cost more per part — but the relationship is not linear. Here's what to expect:
Typical lead times (medical-grade):
Prototypes (1–10 pcs): 5–15 business days
Low volume (50–200 pcs): 2–4 weeks
Bridge (200–2,000 pcs): 4–6 weeks
Production (2,000+ pcs): 4–8 weeks recurring
What drives price in low-volume medical CNC:
Setup/NC programming time — amortized over few pieces
Material minimums — you may pay for a full bar even for one part
Inspection & documentation — FAI, CMM reports, MTR add cost (but required)
Certification overhead — ISO 13485 compliance cost spread over fewer parts
Post-processing — passivation, anodizing, cleanroom packaging are per-batch fixed costs
Indicative price ranges (rough, vary by part complexity):
1 prototype simple part: $50–200
1 prototype complex implant: $300–1,000
10–50 pcs mid-complexity: $100–500/pc
100–500 pcs: $50–300/pc
1,000+ pcs: $20–150/pc
How to reduce low-volume cost:
Design for manufacturability (work with supplier early)
Standardize materials (use common stock sizes)
Consolidate orders (batch multiple parts in one setup)
Loosen non-critical tolerances (tighten only what matters)
Medical Prototype CNC Machining: Best Practices
Prototyping is where many medical projects go wrong — rushed, poorly documented, or with suppliers who don't understand medical requirements.
Best practices for medical prototyping:
1. Start with a DFM Review
Before machining, ask your supplier to review your design for manufacturability. A good DFM can save weeks of rework. See our medical parts guide for common design constraints.
2. Specify Medical-Grade Materials Even for Prototypes
Don't machine a prototype in commercial aluminum to "save money" — you'll learn nothing about the real material's machining behavior, surface finish, or biocompatibility. Use the actual production material.
3. Plan for Iterations
Your first prototype will not be perfect. Build lead time for 2–3 design revisions into your schedule.
4. Document Everything from Day One
Even prototype parts should come with: material certs (even if prototype-grade), inspection reports, and batch records. This builds the documentation foundation for later FDA submission.
5. Choose a Supplier Who Can Scale
The company that makes your 5 prototypes should be able to make your 5,000 production parts. Switching suppliers means revalidation.
6. Don't Over-Specify
Prototype tolerances should match what you actually need to learn — not production-level tolerances that increase cost and delay.
Common prototype mistakes:
Using wrong material (non-medical grade)
Skipping DFM and getting unworkable geometry
Choosing a cheap supplier who can't scale to production
Not keeping prototype documentation for regulatory submissions
Transitioning from Prototype to Production
The jump from prototype to production is where many medical projects stall. Here's how to make it smoothly:
Step 1: Design Freeze
Lock the design before scaling. Document every change that was made during prototyping.
Step 2: Process Validation
With your CNC supplier, develop:
IQ (Installation Qualification): machine setup verified
OQ (Operational Qualification): process parameters documented and tested
PQ (Performance Qualification): 3 consecutive production batches meet specs with SPC
Step 3: First Article Inspection (FAI)
A complete dimensional inspection of the first production lot, compared against the drawing. This is the baseline record.
Step 4: Tooling & Fixture Documentation
Document all fixtures, cutting tools, and programming. These become locked — changes require change control.
Step 5: Supplier Audit
For FDA submission, your quality team (or your notified body) will audit the CNC supplier. Make sure they are ISO 13485 ready.
Step 6: Pilot Production
Run a small production batch (50–200 pieces) to confirm the process is stable before full ramp.
Common transition failures:
Design not frozen → endless revisions, no stable process
No process validation → FDA audit failure
Different supplier for production than prototype → revalidation cycle
No SPC → can't demonstrate capability
Frequently Asked Questions About Low-Volume Medical CNC
Q1: What is the minimum order quantity for medical CNC machining?
A: Most qualified shops accept 1-piece prototype orders. Production MOQs typically start at 50–100 pieces. Pricing improves significantly at 100+ pieces.
Q2: How much does a medical CNC prototype cost?
A: A simple prototype part is typically $50–200. A complex implant-grade part is $300–1,000. Setup, material, inspection, and documentation are the main cost drivers.
Q3: Can I use different suppliers for prototypes and production?
A: You can, but it introduces revalidation risk. Best practice is to use one supplier throughout — from prototype through production — to maintain process consistency.
Q4: How long does a medical CNC prototype take?
A: 5–15 business days for typical prototypes. Complex implant parts or special materials may take 2–3 weeks. Rush service is often available for an additional fee.
Q5: Is low-volume CNC machining cost-effective for medical devices?
A: Yes — because medical devices are often low-volume but high-value, the per-part tooling-free economics of CNC are ideal. injection molding only becomes better at very high volumes, which most medical devices don't reach.
Conclusion: Your Partner from First Prototype to Full Production
Low-volume and custom medical CNC machining is the engine of medical device innovation. Whether you need 1 prototype, 500 clinical trial parts, or 5,000 production components, the right CNC supplier scales with you — without revalidation, without quality drops, and with full regulatory documentation.
At Konsdun, we support medical device companies from prototype through production: ISO 13485 certified, in-house CMM inspection, full traceability, and process validation support. We don't just machine parts — we grow with your product.
