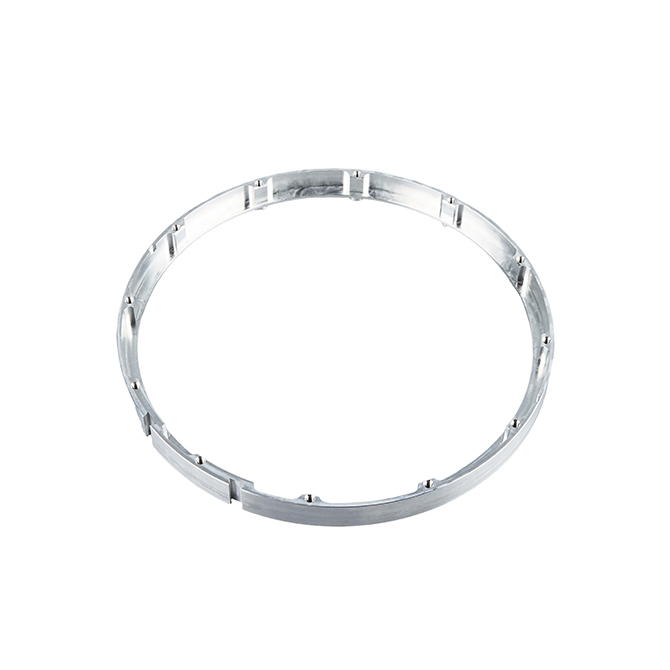

The Automotive Aluminum Motor Mounting Ring is a precision-engineered structural component designed to connect, position, and secure critical elements within electric drive systems, motor housings, and vehicle powertrain assemblies. Featuring a circular profile with evenly distributed mounting holes, this component provides accurate alignment and stable mechanical integration between rotating equipment and surrounding structural assemblies.
As vehicle electrification continues to accelerate worldwide, the demand for lightweight and high-precision motor components has increased significantly. Modern electric vehicles require structural parts that not only reduce weight but also maintain exceptional dimensional stability throughout long-term operation. Aluminum motor mounting rings are widely adopted because they combine low mass, excellent machinability, corrosion resistance, and reliable mechanical performance.
Shenzhen KONSTUN Precision Technology Co., Ltd. manufactures precision Automotive Structural Components for electric vehicle manufacturers, Tier 1 suppliers, powertrain developers, and industrial equipment companies. Through advanced CNC machining technology, we produce mounting rings with highly accurate bolt patterns, concentric geometries, and precisely controlled dimensions to ensure seamless integration into demanding automotive systems.
Unlike conventional fabricated rings or cast structures, CNC-machined mounting rings offer superior precision, smoother surfaces, and better assembly consistency. These characteristics are especially important in applications involving electric motors, where alignment accuracy directly influences performance, vibration control, and service life.
Precision Circular Geometry
Accurate machining ensures excellent concentricity and stable alignment between connected assemblies.
Lightweight Automotive Design
Aluminum construction helps reduce overall system weight without sacrificing structural integrity.
High Assembly Accuracy
Multiple precision-machined mounting holes provide reliable positioning and installation consistency.
Excellent Corrosion Resistance
Suitable for automotive environments exposed to moisture, temperature fluctuations, and road conditions.
Strong Structural Stability
Designed to withstand continuous mechanical loading and operational vibration.
Flexible Integration Capability
Compatible with a wide range of motor housings, gear systems, and automotive assemblies.
The production of precision motor mounting rings requires careful control of concentricity, flatness, hole positioning, and surface finish.
Our manufacturing capabilities include:
CNC Milling
Multi-Axis Machining
Precision Drilling
Thread Machining
Surface Finishing
Circular Profile Machining
Precision Inspection
Depending on customer requirements, machining tolerances can reach ±0.01 mm.
Material selection can be optimized according to structural, thermal, and weight requirements.
Available materials include:
Aluminum 6061-T6
Aluminum 6082-T6
Aluminum 7075-T6
Automotive Grade Aluminum Alloys
High-Strength Lightweight Alloys
Custom Specified Materials
To improve durability and appearance, we offer various finishing solutions.
Available treatments include:
Clear Anodizing
Black Anodizing
Hard Anodizing
Sandblasting
Powder Coating
Electrophoretic Coating
Chemical Conversion Coating
Laser Marking
These treatments help improve corrosion resistance and extend product service life.
Electric Vehicle Drive Systems
Used to connect and position motor assemblies within EV powertrain architectures.
Motor Housing Assemblies
Provides a secure interface between motor housings and supporting structures.
Powertrain Systems
Supports accurate alignment of critical drivetrain components.
Battery-Powered Mobility Equipment
Applied in electric scooters, electric motorcycles, and lightweight transportation systems.
Industrial Electric Motors
Suitable for high-performance industrial drive equipment requiring precise assembly.
Automotive Structural Assemblies
Functions as a precision connection element within larger vehicle systems.
At Shenzhen KONSTUN Precision Technology Co., Ltd., quality control is integrated into every stage of production.
Inspection procedures include:
Material Certification Verification
Dimensional Inspection
Hole Position Verification
Concentricity Inspection
Surface Quality Evaluation
Final Assembly Inspection
Inspection equipment includes:
Coordinate Measuring Machines (CMM)
Digital Height Gauges
Precision Bore Gauges
Optical Measuring Systems
Surface Roughness Testers
Detailed inspection reports can be supplied upon request.
Expertise in Automotive Structural Components
Extensive experience manufacturing precision components for electric vehicles and automotive systems.
Advanced CNC Manufacturing
Modern machining equipment ensures high precision and stable production quality.
Flexible Production Capability
Support for prototype development, pilot production, and high-volume manufacturing.
Engineering Support
Professional technical assistance throughout design and manufacturing stages.
Reliable Quality Management
Comprehensive inspection procedures help maintain consistent product performance.
Global Manufacturing Partner
Serving customers across automotive, transportation, industrial equipment, and EV industries.
Can you manufacture according to our drawings?
Yes. We support OEM and ODM production based on customer drawings and 3D models.
What industries use motor mounting rings?
Electric vehicles, automotive powertrains, industrial motors, robotics, and automation equipment.
What materials are available?
6061, 6082, 7075, and other customized aluminum alloys.
What surface treatments do you provide?
Anodizing, hard anodizing, powder coating, sandblasting, laser marking, and customized finishes.
What tolerance can you achieve?
Typical tolerances can reach ±0.01 mm depending on design requirements.
Can you support mass production?
Yes. We support Prototype Manufacturing through large-scale production programs.
