The Automotive Aluminum Motor Housing serves as one of the most critical structural components within modern electric propulsion systems. Designed to accommodate electric motors, rotor assemblies, stator systems, bearings, cooling structures, and related drivetrain components, the motor housing provides both mechanical protection and dimensional stability throughout vehicle operation.
As global vehicle manufacturers continue transitioning toward electrification, motor housing design has become increasingly important. Modern electric drive systems demand lightweight materials, precise machining accuracy, efficient heat dissipation, and reliable structural integrity. Aluminum Motor Housings have become a preferred solution because they combine excellent strength-to-weight characteristics with superior thermal conductivity and corrosion resistance.
Shenzhen KONSTUN Precision Technology Co., Ltd. specializes in the manufacturing of precision Automotive Structural Components and electric vehicle parts. Utilizing advanced CNC machining centers and strict quality control procedures, we produce motor housings that meet the demanding requirements of automotive manufacturers, EV system suppliers, and industrial equipment developers.

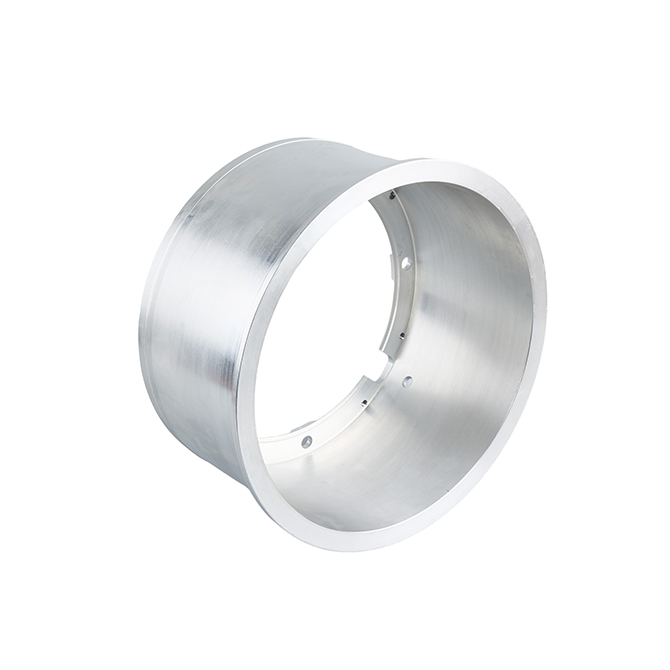

The large-diameter cylindrical design shown in this component provides a rigid enclosure capable of supporting internal motor assemblies while maintaining precise alignment between rotating components. Multiple mounting holes, locating features, and precision-machined interfaces ensure accurate installation and reliable integration into complex drivetrain systems.
Lightweight Aluminum Structure
High-strength aluminum alloys reduce overall system weight while maintaining excellent mechanical performance.
Precision Machined Interfaces
Critical mounting surfaces and bolt patterns are machined to ensure accurate assembly and stable component positioning.
Excellent Heat Dissipation Performance
Aluminum materials provide superior thermal conductivity, helping improve motor cooling efficiency.
High Structural Rigidity
The cylindrical housing design delivers excellent resistance to vibration, deformation, and operational stresses.
Corrosion Resistant Construction
Suitable for long-term operation in demanding automotive and outdoor environments.
Superior Assembly Consistency
Precision manufacturing ensures repeatable dimensions and reliable installation across production batches.
Producing large-diameter motor housings requires advanced machining technology and rigorous process control.
Manufacturing processes include:
CNC Milling
Multi-Axis Machining
Precision Boring
Hole Pattern Machining
Thread Processing
Precision Deburring
The combination of turning and milling operations allows highly accurate control of concentricity, roundness, and mounting dimensions.
Typical machining tolerances can reach ±0.01 mm depending on design requirements.
Available materials include:
Aluminum 6061-T6
Aluminum 6082-T6
Aluminum 7075-T6
ADC12 Aluminum Alloy
A356 Cast Aluminum
Custom Automotive Grade Alloys
Material selection can be optimized according to thermal requirements, structural loads, and application environments.
To improve durability and appearance, multiple finishing solutions are available:
Clear Anodizing
Black Anodizing
Hard Anodizing
Sandblasting
Powder Coating
Electrophoretic Coating
Chemical Conversion Coating
Laser Marking
Customized finishes can be supplied according to customer specifications.

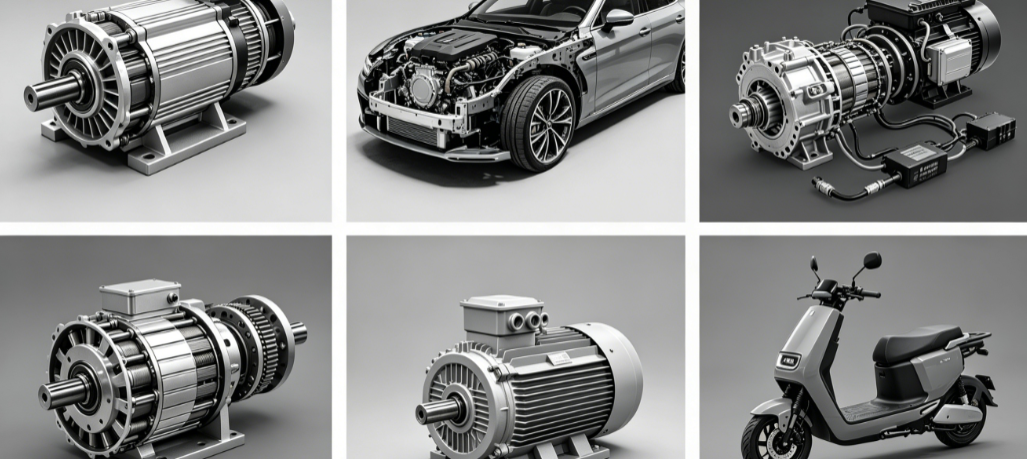

Electric Vehicle Drive Motors
Provides structural protection and mounting support for EV motor assemblies.
Hybrid Vehicle Powertrain Systems
Used in hybrid propulsion systems requiring lightweight and durable motor enclosures.
Integrated Drive Units (IDU)
Suitable for integrated motor, gearbox, and controller assemblies.
Automotive Traction Motors
Supports precision positioning of stators, rotors, and bearing systems.
Industrial Electric Motors
Applied in industrial drive systems and automation equipment.
High-Performance Mobility Platforms
Widely used in electric motorcycles, utility vehicles, and intelligent transportation equipment.
Modern electric vehicle programs place increasing emphasis on efficiency and weight reduction. Aluminum motor housings offer several advantages:
Lower overall vehicle weight
Improved driving range
Enhanced thermal management
Reduced energy consumption
Better corrosion resistance
Improved system reliability
These advantages make aluminum motor housings an essential component in next-generation vehicle architectures.
Every motor housing undergoes comprehensive inspection before shipment.
Quality control procedures include:
Material Certification Verification
Diameter Inspection
Concentricity Measurement
Hole Position Inspection
Surface Finish Evaluation
Final Dimensional Verification
Inspection equipment includes:
Coordinate Measuring Machines (CMM)
Precision Bore Gauges
Roundness Measuring Equipment
Height Gauges
Surface Roughness Testers
Optical Measuring Systems
Inspection reports and dimensional records are available upon request.
Extensive Automotive Manufacturing Experience
Supporting automotive, EV, and industrial equipment manufacturers worldwide.
Advanced CNC Equipment
Capable of machining large and complex structural components with high precision.
Stable Production Quality
Strict process control ensures consistency throughout production.
Flexible Production Volumes
From prototype development to long-term mass production programs.
Engineering Support
Technical assistance available throughout design, optimization, and manufacturing stages.
Global Supply Capability
Reliable manufacturing partner for international automotive and industrial customers.
Can you manufacture motor housings according to our design?
Yes. We support complete custom production based on customer drawings and 3D CAD models.
What industries use aluminum motor housings?
Electric vehicles, hybrid vehicles, industrial motors, robotics, automation equipment, and transportation systems.
What materials are available?
6061, 6082, 7075, ADC12, A356, and other customer-specified aluminum alloys.
What surface treatments can be provided?
Anodizing, hard anodizing, powder coating, sandblasting, laser marking, and custom finishes.
What machining tolerances can be achieved?
Typical tolerances can reach ±0.01 mm depending on geometry and project requirements.
Do you support prototype and production orders?
Yes. We support prototypes, pilot runs, and full-scale manufacturing projects.
