The Automotive Suspension Support Bracket is designed to serve as a critical load-bearing component within vehicle suspension and chassis assemblies. As modern vehicles continue to adopt lightweight construction and advanced suspension architectures, structural brackets play an increasingly important role in maintaining handling performance, ride stability, and overall vehicle safety.
Shenzhen KONSTUN Precision Technology Co., Ltd. manufactures precision-machined Suspension Support Brackets for automotive manufacturers, aftermarket suppliers, electric vehicle developers, and industrial mobility equipment producers. Produced from high-quality aluminum alloys using advanced CNC machining technology, these components combine excellent structural rigidity with reduced weight, helping manufacturers meet both performance and efficiency goals.
Unlike simple mounting brackets, suspension support brackets are subjected to dynamic loads, vibration cycles, cornering forces, and road impact stresses throughout their service life. For this reason, dimensional accuracy, material consistency, and machining quality are essential factors during production.

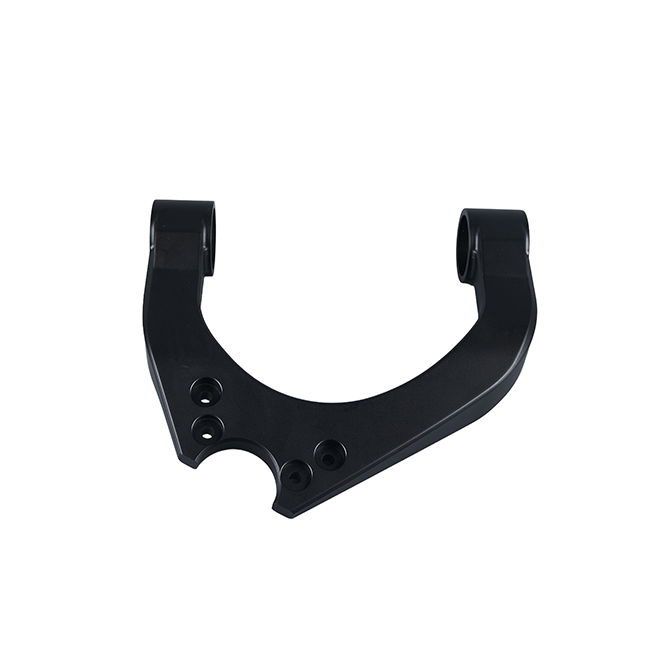

The U-shaped structural design shown in this component provides balanced load distribution while maintaining sufficient clearance for suspension arms, steering linkages, bearings, or mounting assemblies. Precision-machined mounting holes ensure proper alignment and simplify installation during vehicle assembly.
Optimized Structural Geometry
The curved U-shaped configuration provides excellent load distribution while reducing unnecessary material weight.
High Strength-to-Weight Ratio
Manufactured from lightweight aluminum alloys capable of supporting demanding mechanical loads.
Precision Mounting Interfaces
Accurately machined holes and locating surfaces improve assembly consistency and reduce installation errors.
Excellent Fatigue Resistance
Suitable for applications exposed to continuous vibration and repeated load cycles.
Corrosion Resistant Construction
Aluminum materials combined with protective surface treatments help improve durability in outdoor and road environments.
Stable Dimensional Consistency
CNC machining ensures repeatable quality across production batches.
Depending on performance requirements, the following materials can be selected:
Aluminum 6061-T6
Aluminum 6082-T6
Aluminum 7075-T6
High-Strength Forged Aluminum
Automotive Grade Aluminum Alloys
Custom Specified Materials
Material selection can be adjusted according to structural load requirements and vehicle design specifications.
Available finishing solutions include:
Black Anodizing
Hard Anodizing
Clear Anodizing
Powder Coating
Electrophoretic Coating
Sandblasting
Shot Blasting
Laser Engraving
The black anodized finish commonly used for this type of component improves corrosion resistance while providing a premium appearance.
The production of suspension support brackets involves multiple machining stages to achieve precise geometry and structural integrity.
Manufacturing operations may include:
CNC Milling
4-Axis Machining
5-Axis Machining
Precision Drilling
Counterbore Machining
Thread Processing
Deburring and Inspection
Each process is monitored to ensure dimensional stability and compliance with engineering specifications.
Suspension Systems
Used to support control arms, suspension links, and structural mounting points.
Steering Assemblies
Provides secure positioning for steering-related components requiring accurate alignment.
Electric Vehicle Platforms
Suitable for lightweight EV chassis designs where weight reduction is a key objective.
Performance Vehicles
Widely used in high-performance and motorsport applications where rigidity and weight savings are critical.
Chassis Subframe Structures
Functions as a connecting element between major structural components.
Off-Road Vehicles
Provides reliable mechanical support under harsh operating conditions.
Compared with traditional fabricated steel brackets, CNC machined aluminum suspension support brackets offer several benefits:
Lower overall vehicle weight
Improved corrosion resistance
Better machining accuracy
Higher design flexibility
Reduced assembly complexity
Enhanced appearance quality
These advantages make aluminum suspension brackets increasingly popular in both conventional and electric vehicle programs.
Every suspension support bracket undergoes strict inspection throughout production.
Quality control procedures include:
Incoming Material Inspection
Dimensional Verification
Hole Position Inspection
Surface Quality Evaluation
Assembly Fit Testing
Final Product Inspection
Inspection equipment includes:
CMM Measurement Systems
Height Gauges
Digital Micrometers
Thread Gauges
Surface Roughness Instruments
Optical Measuring Equipment
Detailed inspection reports are available upon request.
Specialized Automotive Component Manufacturing
Extensive experience producing structural automotive components and chassis parts.
Advanced CNC Machining Facilities
Modern machining centers capable of handling complex geometries and demanding tolerances.
Consistent Product Quality
Comprehensive process control ensures reliable performance throughout production.
Flexible Manufacturing Quantities
Support for prototypes, pilot projects, and high-volume manufacturing.
Engineering Collaboration
Professional support from design optimization through production implementation.
Global Supply Capability
Serving automotive and industrial customers across international markets.
Can this bracket be manufactured according to our design?
Yes. We support fully customized production based on drawings or 3D models.
What industries use this type of bracket?
Automotive, electric vehicles, motorsports, industrial vehicles, robotics, and mobility equipment.
What surface treatments are available?
Black anodizing, hard anodizing, powder coating, sandblasting, and custom finishes.
Can you provide prototype samples?
Yes. Prototype and low-volume production services are available.
What tolerance can you achieve?
Typical machining tolerances can reach ±0.01mm depending on geometry and requirements.
Do you support large-volume automotive projects?
Yes. We support both development programs and long-term production contracts.
