The CNC Machined Aluminum Mold Support Plate is a critical structural component used in mold manufacturing, tooling systems, fixture assemblies, and precision production equipment. Designed to provide reliable support, accurate positioning, and structural reinforcement, this component helps maintain mold stability throughout production cycles while ensuring consistent product quality.
In modern mold manufacturing, structural components play an essential role in maintaining dimensional accuracy and operational reliability. Mold support plates are widely used to connect, reinforce, and stabilize different sections of tooling systems. These components help distribute mechanical loads, improve assembly precision, and reduce deformation during injection molding or production operations.
Manufactured from high-quality aluminum alloys, mold support plates offer an excellent balance between strength and weight reduction. Compared with traditional steel structures, aluminum components can significantly reduce mold weight, improve handling efficiency, and shorten machine setup times. At the same time, advanced CNC machining technology ensures that every mounting surface, hole position, and profile geometry meets strict dimensional requirements.
Shenzhen KONSTUN Precision Technology Co., Ltd. specializes in the manufacturing of precision Mold Components and tooling solutions. Using advanced CNC machining centers, multi-axis milling systems, and comprehensive inspection equipment, we produce mold support plates with exceptional dimensional accuracy and repeatability.

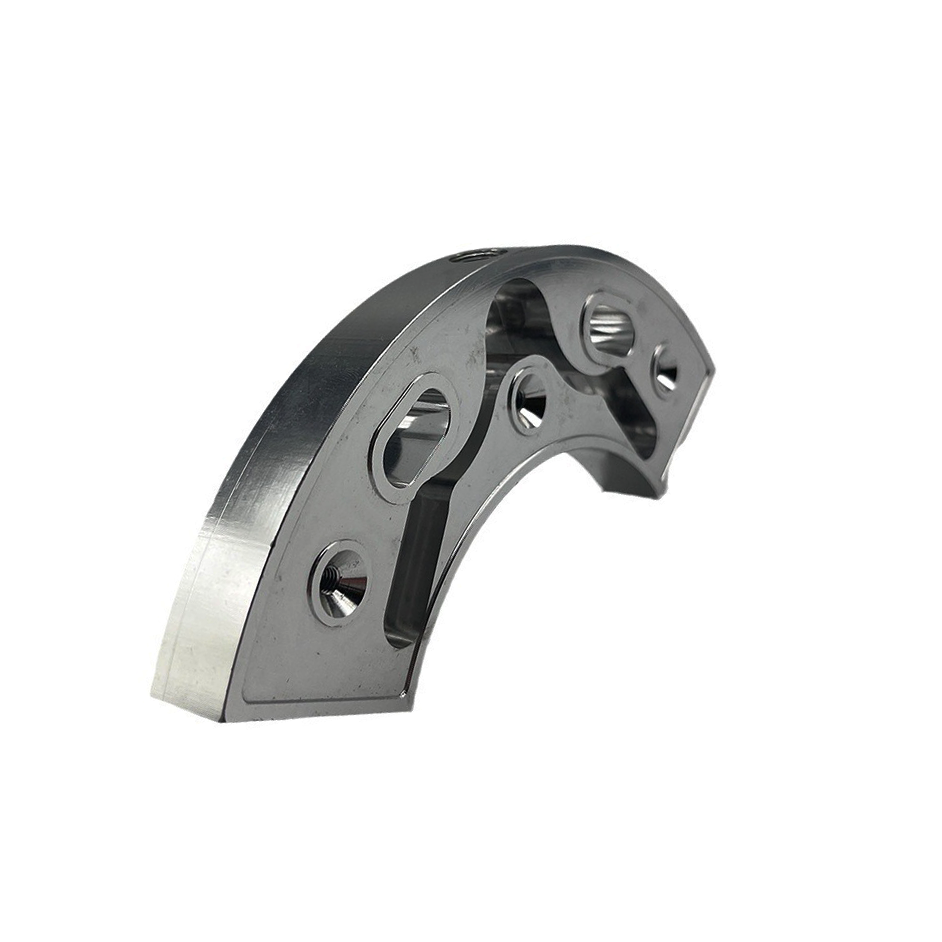

The curved and lightweight design commonly used in aluminum mold support plates allows engineers to optimize structural performance while minimizing unnecessary material usage. This approach improves efficiency without compromising mechanical stability, making the component suitable for both prototype tooling and production molds.
Whether used in injection molds, automation fixtures, production tooling, die systems, or custom manufacturing equipment, CNC machined aluminum mold support plates provide dependable performance and long service life.
High-accuracy machining ensures excellent dimensional consistency and assembly precision.
Lightweight Aluminum Structure
Reduces overall mold weight and improves handling efficiency.
High Structural Stability
Designed to support tooling systems under repeated production cycles.
Optimized Hollow Design
Removes excess material while maintaining structural integrity.
Excellent Corrosion Resistance
Suitable for long-term use in industrial manufacturing environments.
Reliable Positioning Accuracy
Precision-machined holes and surfaces ensure accurate mold assembly.
Custom Manufacturing Capability
Supports customer-specific dimensions, profiles, and mounting requirements.
Long Service Life
Designed for continuous industrial production applications.
Improved Mold Assembly Accuracy
Supports precise alignment between mold components.
Reduced Tooling Weight
Aluminum construction improves handling and installation efficiency.
Enhanced Production Stability
Provides dependable structural reinforcement during operation.
Faster Mold Setup
Lightweight structures simplify maintenance and assembly procedures.
Cost-Effective Manufacturing
Suitable for both prototype and production tooling programs.
Flexible Design Solutions
Can be customized for different mold structures and industrial applications.
Material Preparation
CNC Milling
Multi-Axis Machining
Precision Drilling
Tapping
Dimensional Inspection
Final Quality Verification
Aluminum 6061-T6
Aluminum 7075-T6
Aluminum 6082
Tool Steel P20
H13 Tool Steel
S136 Stainless Mold Steel
Customized Materials
Anodizing
Hard Anodizing
Sandblasting
Chemical Conversion Coating
Polishing
Laser Marking
Support and reinforcement structures for injection mold assemblies.
Prototype Tooling
Lightweight tooling systems for product development projects.
Production Mold Systems
Structural components used in high-volume manufacturing molds.
Automation Fixtures
Positioning and support structures for automated production equipment.
Die Manufacturing
Support plates used in forming and stamping tooling systems.
Precision Manufacturing Equipment
Custom structural components for industrial production machinery.
Can you manufacture according to mold drawings?
Yes. We support custom mold components based on customer CAD files and technical drawings.
What materials are available?
Aluminum alloys, tool steels, stainless mold steels, and customized materials.
What machining tolerance can you achieve?
Typical tolerances can reach ±0.01 mm depending on part geometry.
Do you support prototype tooling projects?
Yes. We support prototype tooling, pilot production, and mass-production mold programs.
Can surface treatments be customized?
Yes. Various anodizing, polishing, and protective finishes are available.
What industries use mold support plates?
Injection molding, tooling manufacturing, automation equipment, precision engineering, and industrial production systems.
