Product Introduction

Drone airframe components play an important role in UAV structural performance, directly affecting equipment stability, weight distribution, and assembly accuracy. This product is a precision machined metal component set designed for professional drone structures, including frame supports, mounting plates, protective parts, and connection brackets.

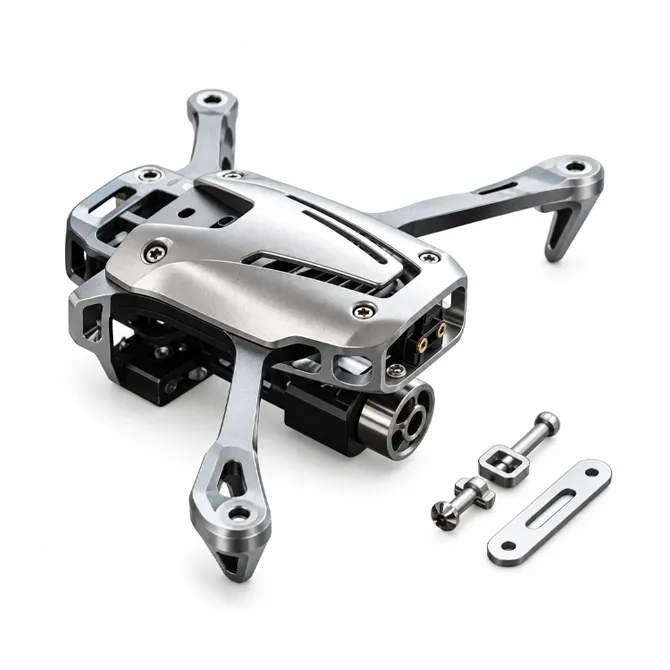

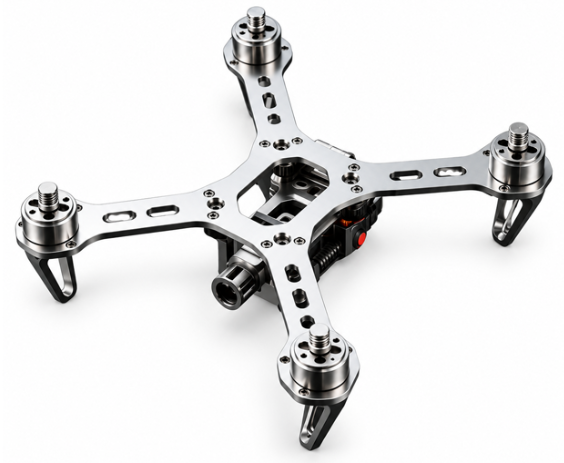

The components shown feature lightweight aluminum structures combined with stainless steel fastening and connection elements. Through CNC milling, drilling, surface finishing, and Precision Machining processes, these parts achieve accurate dimensions, smooth edges, and reliable assembly interfaces.

Compared with standard plastic drone frames, CNC metal airframe parts provide higher structural strength, better dimensional stability, and improved durability for demanding applications. Aluminum alloy helps reduce overall weight while maintaining rigidity, making it suitable for professional UAV platforms, industrial drones, inspection drones, and custom drone development projects.

KONSTUN Precision Technology specializes in CNC machined metal components, supporting aluminum and stainless steel parts production for UAV systems, robotics equipment, automation devices, and precision mechanical assemblies.

Key Specifications & Parameters

Product Type: CNC machined drone airframe components

Product Form: UAV frame parts, drone mounting brackets, structural plates, machined supports, metal connection components

Material Options: Aluminum alloy, stainless steel, titanium alloy, magnesium alloy, and other engineering metals

Processing Methods: CNC milling, CNC Turning, drilling, tapping, precision machining, deburring, polishing, and Surface Finishing

Surface Treatment Options: Anodizing, sandblasting, brushing, polishing, electroplating, powder coating, and other protective finishes

Structure Features: Lightweight frame design, precision mounting holes, recessed structures, reinforced edges, connection interfaces, and machined surfaces

Application Fields: Industrial drones, UAV systems, inspection drones, aerial photography equipment, robotics platforms, and custom unmanned systems

Drawing Support: 2D drawings, 3D CAD files, STEP, STP, DXF, PDF files, or sample reference

Product Highlights

Lightweight Metal Airframe Structure

The aluminum alloy structure provides a good balance between weight reduction and mechanical strength, helping drones maintain stable flight performance while reducing unnecessary load.

Precision CNC Machined Components

CNC machining ensures accurate dimensions, smooth surfaces, and consistent assembly performance, which is important for drone structures requiring precise alignment.

High Strength Connection Design

The machined mounting areas and reinforced structures improve connection reliability between different drone modules, motors, covers, and electronic components.

Professional Metal Surface Finish

Surface treatments such as anodizing and sandblasting improve appearance, corrosion resistance, and long-term durability for outdoor and industrial applications.

Flexible UAV Structural Applications

The components can be used for different drone designs, including industrial UAVs, inspection platforms, mapping drones, and custom-developed aerial systems.

Combination of Aluminum and Stainless Steel Materials

The use of different metal materials allows designers to balance weight, strength, wear resistance, and functional requirements in drone assemblies.

Main Functions

Drone Frame Support

These components provide the main structural support for UAV assemblies, helping connect motors, electronic modules, protective covers, and other important parts.

Component Mounting and Positioning

Precision machined holes and mounting surfaces help ensure accurate installation of cameras, sensors, motors, batteries, and control modules.

Structural Stability Improvement

The rigid metal structure helps reduce deformation during operation, improving the overall stability of drone platforms.

Weight Optimization

Aluminum alloy components reduce unnecessary weight while maintaining sufficient strength for professional drone applications.

Protection of Internal Modules

Some airframe parts can act as protective supports or covers to help shield electronic components from external impact.

Support for Custom UAV Development

These machined parts are suitable for drone manufacturers and developers creating customized UAV platforms with specific structural requirements.

Specific Application Scenarios

Industrial Inspection Drones

CNC aluminum airframe parts are suitable for industrial drones used in infrastructure inspection, equipment monitoring, and large-area surveying applications.

Aerial Photography UAV Systems

The lightweight structure supports camera drones that require stable mounting platforms for imaging equipment and flight control components.

Mapping and Surveying Drones

Precision machined frame components help maintain structural accuracy for drones used in surveying, mapping, and data collection projects.

Agricultural UAV Equipment

Metal airframe components can be used in agricultural drones requiring durable structures for outdoor operation environments.

Robotics and Autonomous Systems

The components are also suitable for robotic platforms and unmanned systems that require lightweight and strong metal structures.

Custom Professional Drone Platforms

Drone manufacturers can use these components for developing customized UAV products with specific size, weight, and assembly requirements.

FAQ

Q1: What are these CNC drone airframe parts used for?
A1: These parts are used for UAV structural assemblies, including drone frames, mounting brackets, support plates, and precision connection components.

Q2: Why are aluminum alloys commonly used for drone frame parts?
A2: Aluminum alloys provide a good combination of lightweight characteristics, strength, corrosion resistance, and machining performance, making them suitable for drone structures.

Q3: What machining processes are used for these drone components?
A3: Common processes include CNC milling, CNC turning, drilling, tapping, deburring, polishing, and surface finishing.

Q4: Can these parts be used for industrial drones?
A4: Yes. These components are suitable for industrial UAVs, inspection drones, surveying drones, and other professional drone platforms requiring reliable metal structures.

Q5: What surface treatments are available for CNC drone parts?
A5: Common options include anodizing, sandblasting, polishing, brushing, powder coating, and other finishes depending on the material and application.

Q6: What makes CNC metal drone parts different from standard plastic components?
A6: CNC metal parts generally provide better structural rigidity, dimensional accuracy, durability, and long-term stability for professional UAV applications.
