The 5-Axis CNC Machined Vacuum Cast Aluminum Motor Spindle Housing is a highly engineered structural component designed for applications requiring exceptional dimensional accuracy, airtight performance, lightweight construction, and complex geometric integration. Manufactured through vacuum pressure casting followed by precision 5-axis CNC machining, this housing combines the Production Efficiency of casting technology with the accuracy of advanced CNC finishing processes.
As modern industrial equipment becomes increasingly integrated and lightweight, complex housing components must simultaneously provide structural support, thermal management, sealing performance, and assembly precision. Traditional fabrication methods often struggle to balance these requirements, particularly when intricate internal cavities, multiple flange interfaces, and precision alignment features are involved.
To overcome these challenges, vacuum pressure casting technology is employed to create near-net-shape aluminum alloy blanks with excellent density and reduced porosity. Following casting, advanced 5-axis CNC machining is used to accurately process mounting flanges, bearing interfaces, threaded holes, sealing surfaces, cable routing channels, and internal cavities. This hybrid manufacturing approach significantly improves dimensional accuracy while reducing material waste and machining time.

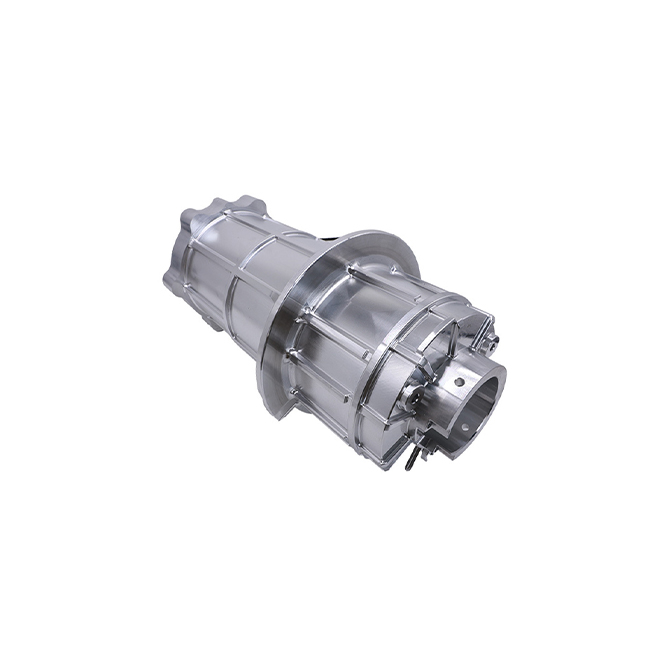

The component features a multi-stage cylindrical body structure with strategically designed reinforcement grooves that enhance mechanical rigidity while maintaining a lightweight profile. An integrated central flange provides precise positioning and sealing interfaces between adjacent assemblies, while stepped connection ends support shaft integration, pneumatic channels, and motor stator installations.
Shenzhen KONSTUN Precision Technology Co., Ltd. specializes in manufacturing high-complexity vacuum casting components and precision CNC machined structural parts. Our engineering capabilities enable the production of advanced aluminum housings used in aerospace equipment, vacuum systems, industrial automation, high-performance motor assemblies, and new energy applications.
The combination of vacuum casting technology and 5-axis machining allows us to manufacture components that would be difficult or costly to produce using conventional machining alone. This makes the motor spindle housing an ideal solution for industries requiring lightweight, airtight, and structurally optimized metal components.
Vacuum Pressure Cast One-Piece Structure
Manufactured as a single integrated casting to improve structural integrity and reduce assembly complexity.
Advanced 5-Axis CNC Machining
Critical interfaces, mounting surfaces, and positioning features are machined with exceptional accuracy.
Excellent Airtight Performance
Vacuum casting technology minimizes internal porosity and supports sealing applications.
Lightweight Aluminum Construction
Reduces equipment weight while maintaining high mechanical strength.
Integrated Multi-Flange Design
Supports complex equipment assembly and precise system alignment.
Reinforced Structural Geometry
External strengthening ribs improve rigidity and load-bearing capability.
Optimized Internal Cavity
Designed for motor shafts, stators, pneumatic channels, and vacuum pipelines.
Superior Heat Dissipation
Aluminum alloy construction facilitates efficient thermal management.
Reduced Manufacturing Complexity
One-piece casting minimizes the need for multiple fabricated components.
Improved Dimensional Accuracy
5-axis machining ensures critical interfaces meet demanding tolerances.
Enhanced Structural Reliability
Integrated construction improves strength and long-term durability.
Excellent Weight-to-Strength Ratio
Ideal for aerospace, automation, and high-performance equipment.
Better Thermal Performance
Efficient heat transfer helps improve equipment operating stability.
Cost-Effective Production
Combines casting efficiency with Precision Machining quality.
Standard Casting Materials
A356 Aluminum Alloy
ZL104 Aluminum Alloy
Optional Materials
A357 Aluminum Alloy
ADC12 Aluminum Alloy
Customized Casting Alloys
Standard Finishes
Precision CNC Milled Surface
Mirror Polishing
Bright Machined Finish
Optional Finishes
Clear Anodizing
Black Anodizing
Hard Anodizing
Sandblasting
Chemical Conversion Coating
Laser Marking
Vacuum Pressure Casting
Heat Treatment
Rough CNC Machining
5-Axis CNC Milling
CNC Turning Operations
Thread Processing
Airtightness Inspection
CMM Dimensional Inspection
Final Quality Verification
Aerospace Equipment
Servo Motor Spindle Housings
Flight Control Actuator Housings
Hydraulic Airtight Chambers
Aircraft Structural Components
Vacuum Equipment
Vacuum Transfer Chambers
Vacuum Pump Assemblies
Leak Testing Equipment
Vacuum Automation Systems
Industrial Automation
Rotary Module Housings
Servo Drive Assemblies
Motion Control Equipment
Precision Mechanical Systems
New Energy Equipment
High-Power Motor Housings
Fluid Distribution Modules
Energy Storage Equipment
Integrated Valve Body Structures
Semiconductor Equipment
Vacuum Handling Systems
Precision Motion Platforms
Cleanroom Automation Equipment
Expertise in Vacuum Casting Technology
Extensive experience producing high-precision aluminum castings with complex geometries.
Advanced 5-Axis Machining Capability
Capable of manufacturing intricate structural components with superior dimensional accuracy.
Complete Manufacturing Solution
From casting design to final machining and inspection.
Strict Quality Management
Comprehensive inspection procedures ensure consistent product performance.
Flexible Production Capability
Support for prototypes, pilot production, and large-volume manufacturing.
Global Engineering Support
Serving customers in aerospace, automation, energy, and industrial equipment industries worldwide.
What casting process is used?
Vacuum pressure casting technology is used to improve density and reduce porosity.
What materials are available?
A356, ZL104, A357, ADC12, and other custom casting aluminum alloys.
Can airtight testing be provided?
Yes. Leak testing and airtightness verification can be performed according to customer requirements.
What machining tolerance can be achieved?
Critical dimensions can typically achieve tolerances of ±0.01 mm depending on design specifications.
Can you manufacture according to customer drawings?
Yes. OEM and custom manufacturing services are available based on 2D and 3D engineering data.
Which industries commonly use this housing?
Aerospace, vacuum equipment, automation systems, semiconductor manufacturing, and new energy industries.
